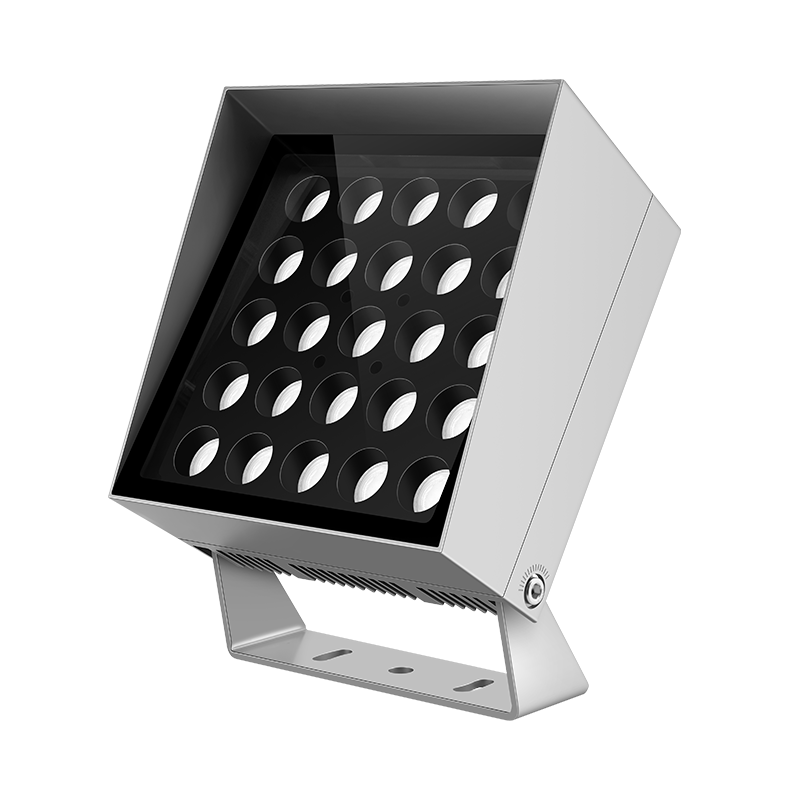

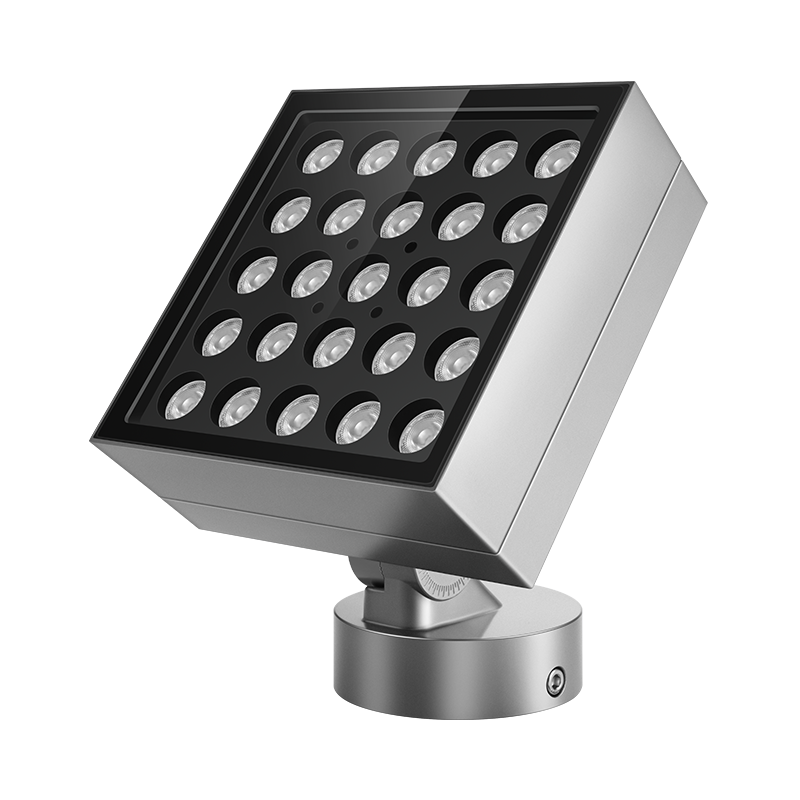

Cube 2.0

Square LED floodlight for outdoor architectural and facade lighting

120W-150W, MONO & RGBW 4-IN-1 & RGBCLAW 7-IN-1 LIGHT COLOURS

Luminaire

  • Fluorocarbon painted die-cast aluminum body with tempered glass
  • Polycarbonate optical lenses
  • Protection rating IP66 for exterior applications

Performance

  • Ultra spot light distribution 2° available for long-throw illumination
  • Innovative 7-in-1 colour technology dynamic lighting
  • Well designed optical system for high visual comfort
  • Surface / pole mounting for a wide variety of applications
  • Tunable White on request
  • DALI / 0-10V / RDM on request
Catalogue

Product code

power

optics

light colours

flux

control

input volt.

datasheet

0822W120

120W

2°

2700K – 4000K

6,000 lm

ON/OFF

AC100-240V

0822W120

120W

2°

RGBW

4,200 lm

DMX512

AC100-240V

0822W120

120W

4.5° – 60° / 10°x70°

2700K – 4000K

9,600 lm

ON/OFF

AC100-240V

0822W150

150W

8° – 30° / 15°x60°

RGBW

6,750 lm

DMX512

AC100-240V

0822W150

150W

10° – 30° / 15°x60°

RGBCLAW

6,000 lm

DMX512

AC100-240V

other versions

Cube 2.0

power: max 10W
power: max 20W
power: max 60W
power: max 100w
