Dan 2.0

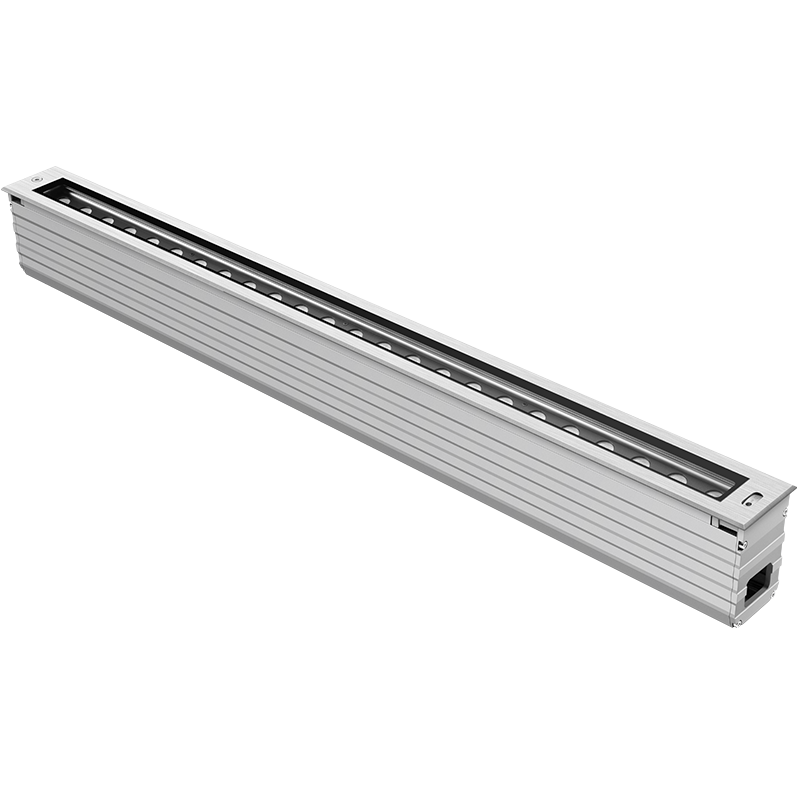

Drive-over linear inground LED wall washer grazer adjustable beam

21W-100W, MONO & RGBW 4-IN-1 LIGHT COLOURS, 1000MM

Luminaire

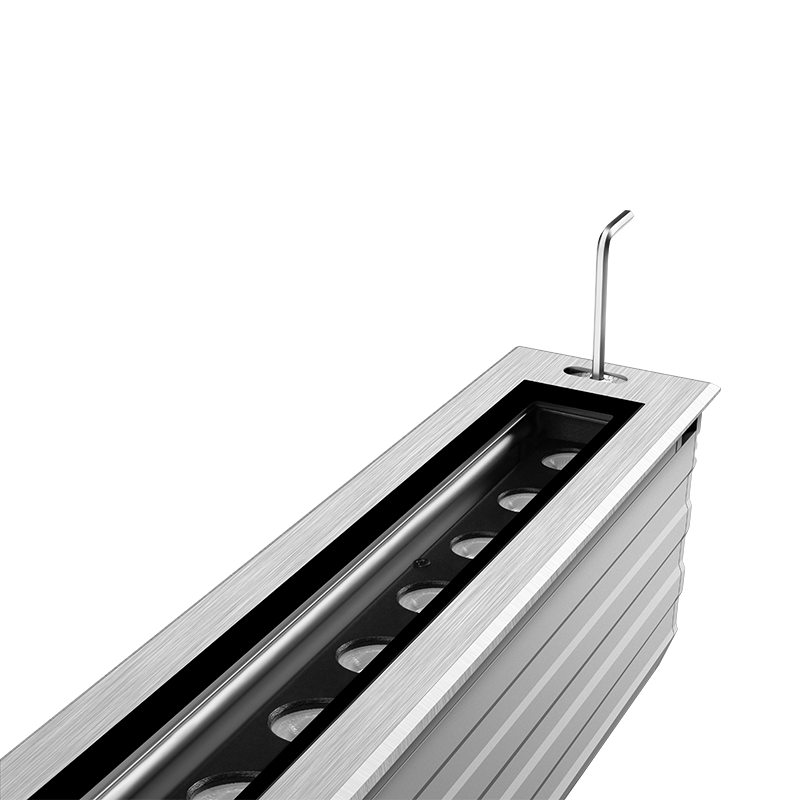

  • Aluminum body and recessed box with tempered glass protection cover
  • Stainless steel trim
  • Polycarbonate optical lenses
  • Protection rating IP67 IK10 for exterior applications

Performance

  • Ultra spot light distribution 2.5° available for long-throw illumination
  • Directional optical system allows more precise and effective lighting
  • Can be walked over and driven over
  • High uniformity and consistency, continuous illumination without dark areas
  • DALI / 0-10V on request
  • Versions with built-in power supply ( driver ) on request
Catalogue

Product code

power

optics

light colours

flux

control

input volt.

datasheet

1917W21

21W

8° – 60° / 10°x60°

2700K – 4000K

1,580 lm

ON/OFF

DC24V

1917W45

45W

8° – 60° / 10°x60°

2700K – 4000K

3,380 lm

ON/OFF

DC24V

1917W48

48W

20° – 60° / 15°x60°

RGBW

1,920 lm

DMX512

DC24V

1913W60

60W

6° – 60° / 10°x70°

2700K – 4000K

4,500 lm

ON/OFF

DC24V

1913W60

60W

9° – 45° / 15°x60°

RGBW

2,400 lm

DMX512

DC24V

1913W100

100W

2.5°

2700K – 4000K

4,500 lm

ON/OFF

DC24V

1913W100

100W

6° – 60° / 10°x70°

2700K – 4000K

7,500 lm

ON/OFF

DC24V

1913W100

100W

9° – 45° / 15°x60°

RGBW

4,000 lm

DMX512

DC24V

other versions

Dan 2.0

power: max 30w / 300mm
power: max 50w / 500mm
