York S

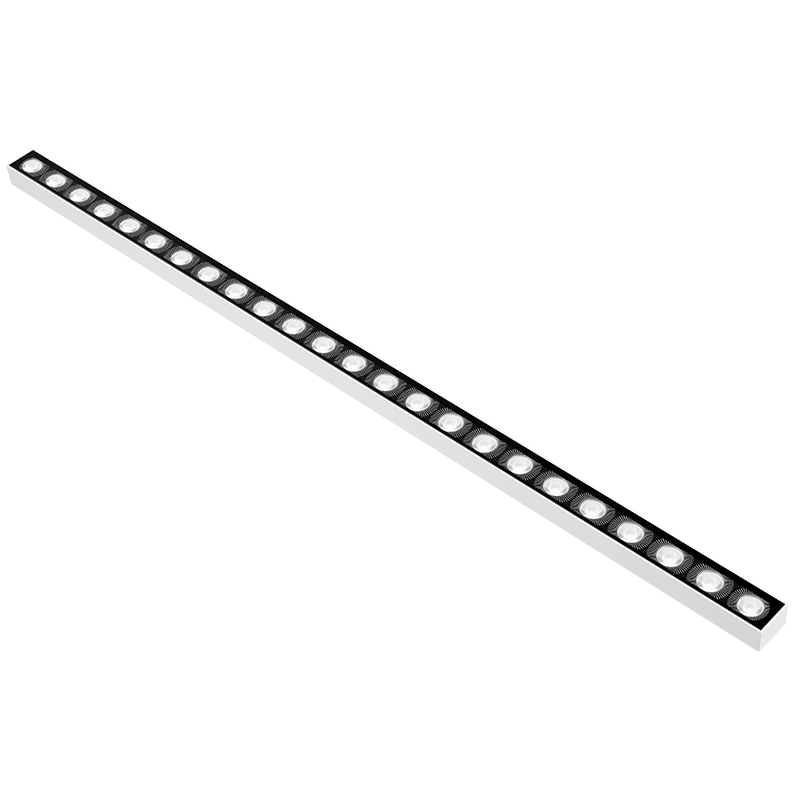

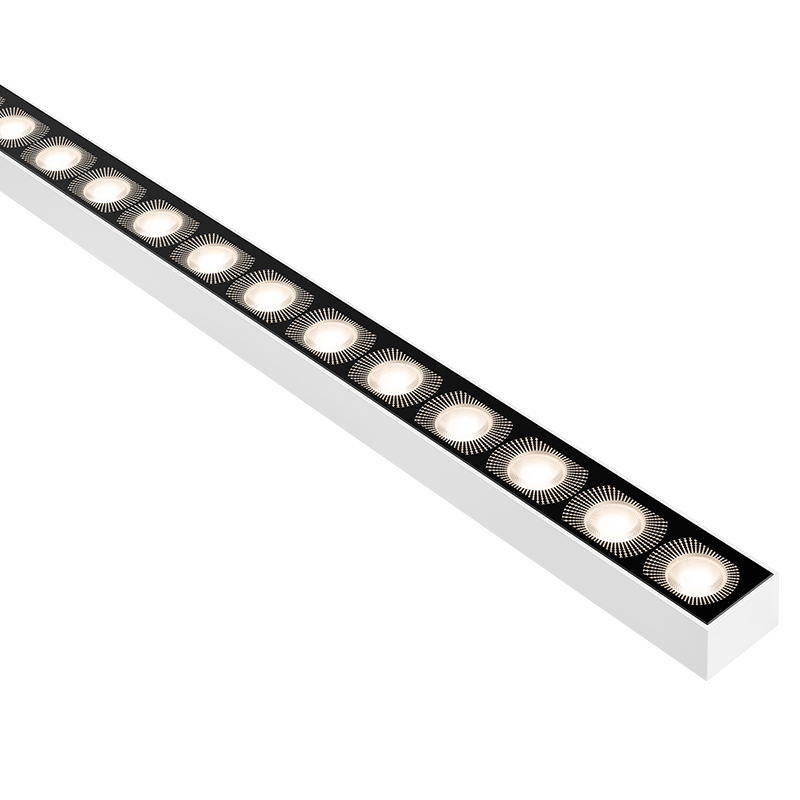

Linear LED wall washer for outdoor architectural and facade lighting

6W-12W, MONO & RGBW 4-IN-1 LIGHT COLOURS, 300MM

Luminaire

Anodized extruded aluminum body with tempered glass
Polycarbonate optical lenses
Protection rating IP66 for exterior applications

Performance

Well designed optical system for wall washing and grazing applications
High uniformity and consistency, continuous illumination without dark areas
Custom length on request
Remote constant voltage power supply required

Product code

power

optics

light colours

flux

control

input volt.

datasheet

2506W6(0.3)

6W

20° – 60° / 18°x50°

2700K – 4000K

480 lm

ON/OFF

DC24V

2506W8(0.3)

8W

20° – 60° / 25°x45°

RGBW

360 lm

DMX512

DC24V

2507W12(0.3)

12W

20° – 60° / 18°x50°

2700K – 4000K

960 lm

ON/OFF

DC24V

2507W12(0.3)

12W

20° – 60° / 25°x45°

RGBW

540 lm

DMX512

DC24V

other versions

York S
